ARRI
ARRI ALEXA MINI
The ARRI ALEXA MINI is a compact and lightweight digital cinema camera that offers exceptional image quality and versatility. It features a S35 format sensor, 4K UHD recording, and a wide dynamic range, making it ideal for professional filmmakers and cinematographers.
Add items
Scroll
ARRI
ARRI ALEXA MINI
The ARRI ALEXA MINI is a compact and lightweight digital cinema camera that offers exceptional image quality and versatility. It features a S35 format sensor, 4K UHD recording, and a wide dynamic range, making it ideal for professional filmmakers and cinematographers.
Add items
Technical Data
| Sensor Type | Super 35 format ARRI ALEV III CMOS sensor with Bayer pattern color filter array |
|---|---|
| Sensor Size | 28.25 x 18.17 mm / 1.112 x 0.715" |
| Image circle 33.59 mm / 1.322" | |
| Sensor Resolution | 3424 x 2202 |
| Dynamic Range | 14+ stops |
| Maximum Frame Rate | up to 200 fps |
| Recording Formats | ARRIRAW/Apple ProRes 4444 XQ/Apple ProRes 4444 Apple ProRes 422 HQ |
| Recording Media | CFast 2.0 Cards |
| Lens Mount options | LPL/PL/EF |
| Integrated Filters | ND filters 0.6, 1.2, 2.1; Fixed optical low pass, UV, IR filter |
| ISO Range | 160-3200 |
| Color Output | Rec 709, Rec 2020, Log C, |
| Custom Look (ARRI Look File ALF-2) | |
| Viewfinder | Multi Viewfinder MVF-1 with 3,2" flip-out monitor. OLED viewfinder display; |
| LCD flip-out monitor | |
| Interfaces | 1x VF output |
| 2x 6G SDI (BNC) | |
| 1x LEMO 5pin LTC Timecode In/Out | |
| 1x LEMO 10pin Ethernet for remote control and service | |
| 1x BNC Sync In | |
| 1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and unregulated power output (outputs battery voltage) | |
| 1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable | |
| 1x USB 2.0 (for user setups, look files etc) | |
| Audio Input | 1x LEMO 5pin balanced stereo line in |
| (Line input max. level +24dBu correlating to 0dBFS) | |
| Power Input | 1x LEMO 8pin (10.5-34 V DC) |
| Weight | ∼2.3 kg / ∼5 lbs |
| Dimensions | 140 x 125 x 185 mm / 5.5 x 4.9 x 7.3" |
Included products
- 4x CFast 2.0 256GB cards
- CFast 2.0 card reader
- MVF-1 Viewfinder
- Viewfinder cable 0.75m
- Viewfinder extension bracket VEB-3

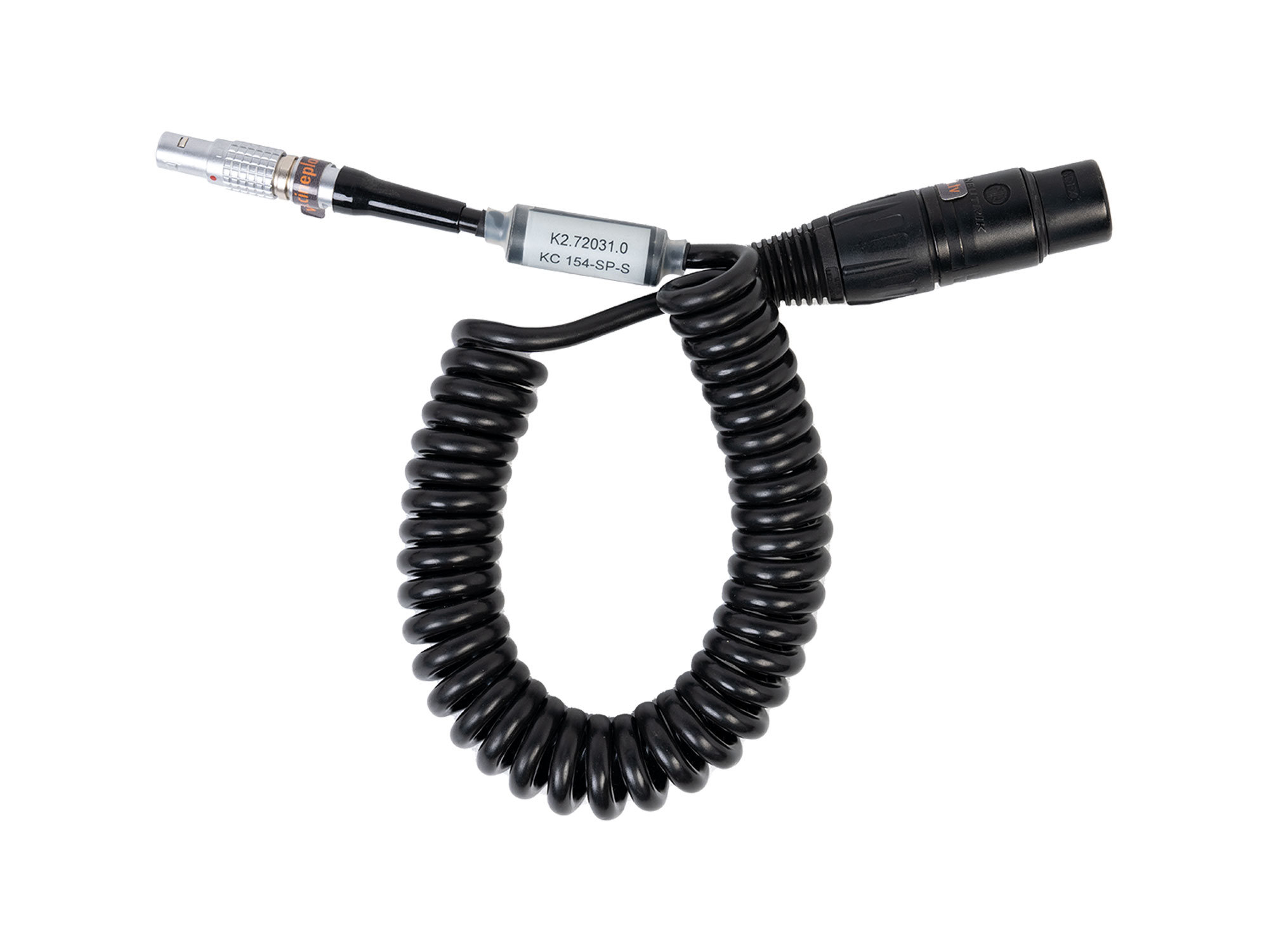

- 3-pin XLR power cable
- 5-pin lemmo to XLR 3-pin female audio cable
- EF Lens mount (optional)
- PL Lens mount (optional)
- LPL Lens mount (optional)
- Tilta/Movcam cage set
- ARRI shoulder pad alexa mini CSP-1
- 2x Rods 19mm (9” 24cm) BT Drumstick
- 2x Rods 15mm (9” 24cm) BT Drumstick
